High-speed Top And Bottom Feeding Rewinder

The rewinder used for slitting and rewingding 90-150g/m2 paper to finished paper roll.The finished paper roll width and tightness can meet the requirements of the finished goods.In the rewinding process can also remove the poor quality paper, bond breakage.

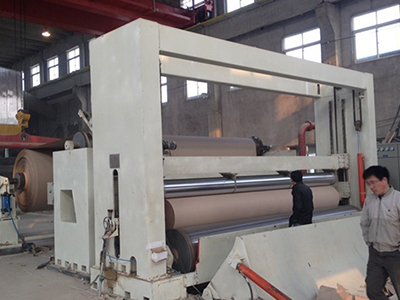

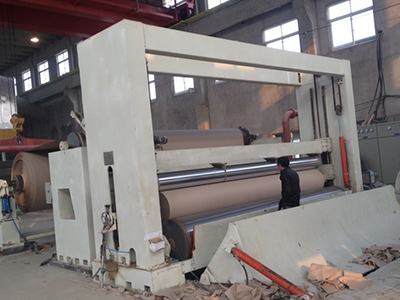

High-speed Top And Bottom Feeding Rewinder

High-speed Top And Bottom Feeding Rewinder High-speed Top And Bottom Feeding Rewinder

Model (mm)

1092

1575

1760

1880

2100

2400

2640

2850

3200

3400

3600

3800

4000

4200

4400

4600

4800

5000

5200

5400

5600

Gauge (mm)

2000

2400

2600

2700

3000

3200

3500

3700

4100

4300

4500

4700

5280

5480

5680

5880

6080

6280

6480

6680

6880

Working speed (m/min)

600

Max base paper diameter (mm)

1200-2200

Max finished product diameter (mm)

1000-1500

Driving Method

electromagnetic variable-speed motor driving/ variable frequency variable-speed motor driving

Braking method

DC motor braking/ Variable frequency motor braking
