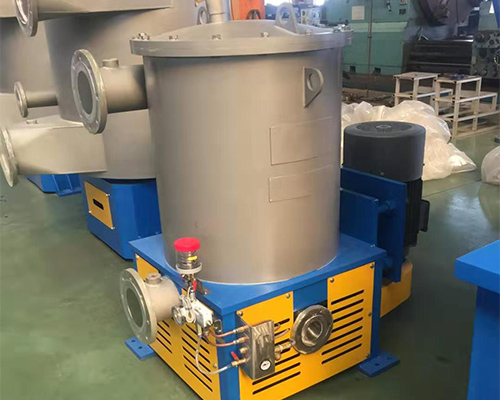

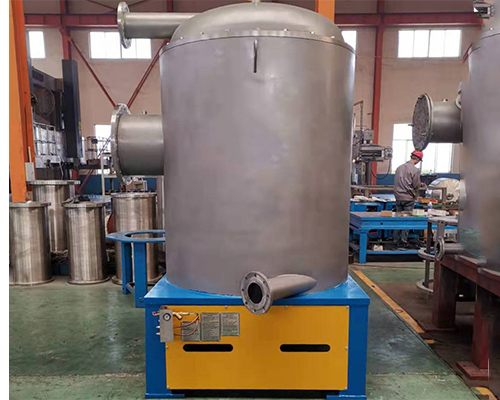

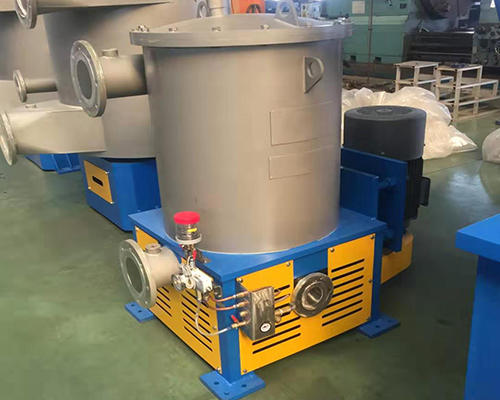

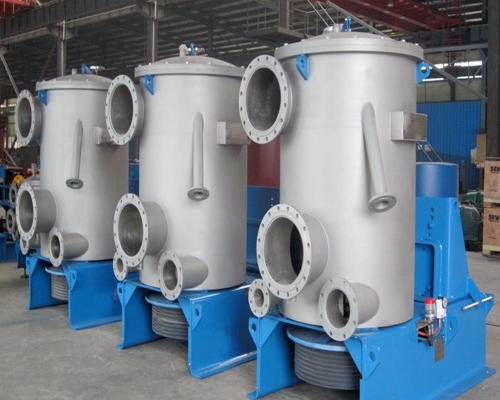

Inflow Pressure Screen before Headbox

It can be used as paper stock screening equipment before paper machine or fine screening in pulp production system. Used as pulp screening equipment before paper machine or fine screening in pulp production system. Great throughput with more long fiber; lower power consumption; high efficiency with less rejects.

 Inflow Pressure Screen Before Headbox

Application:

It can be used as paper stock screening equipment before paper machine or fine screening in pulp production system.

网前筛-1--网前筛-2-

Advantage:

1.Impurities in the outside of the screen cylinder and get rid of the screen cylinder in the centrifugal force generated by rotor’s rotation, which lessen the abrasion of the screen cylinder and prolong its life.

2.Separate the impurities from the fiber in good effect to avoid block of the screen slot in the condition of proper flow and low pulsing force.

3.Its performance can promote the paper machine to be in proper running with less broken paper.

4.Great throughput with more long fiber; lower power consumption; high screening efficiency with less rejects.

inflow pressure screen before headbox-1

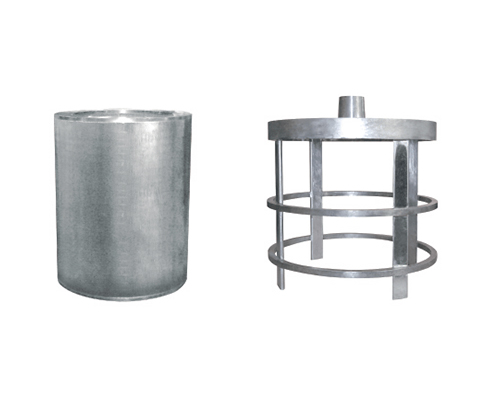

                                                                                 rotor for Inflow Pressure Screen

Main technical data:

Model

EST0.6

EST0.9

EST1.2

EST1.5

EST2.0

EST2.5

EST3.5

EST4.5

EST6.0

Inlet consistency (%)

0.5-1.2

Inlet pressure (mpa)

0.1-0.3

Motor power (kw)

15-22

18.5-30

22-37

30-45

37-55

37-75

45-110

55-132

75-160
