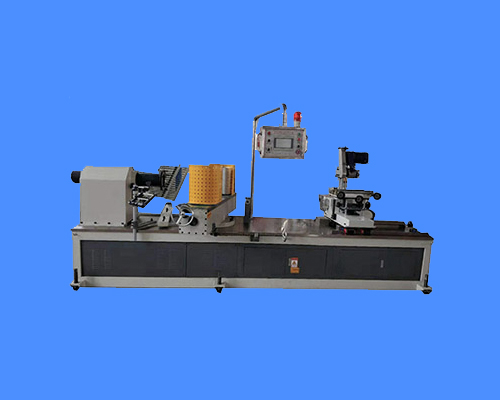

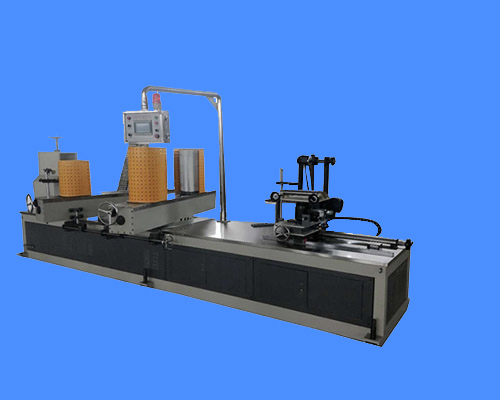

Numerical Control Automtic Tube Machine

Adopt PLC control system and touch screen operation panel, vector type high torque inverter for speed regulation. Dual position length control and speed regulation make paper tube cutting length more accurate.Drive part is low-noisy design.Two-side coating and dependent glue tank

Numerical Control Automtic Tube MachineAdvantage:

1.High performance configuration,better adaptation

2.Adopt PLC control system and touch screen operation panel

3.The main machine adopts vector type high torque inverter for speed regulation

4.Dual position length control and speed regulation make paper tube cutting length more accurate

5.Modularity electrical design makes it easier for operation and maintenance

6.Drive part is low-noisy design

7.Two-side coating and dependent glue tank

Numerical Control Automtic Tube Machine

Main technical data:

Number of paper layers:

3 -16 paper layers

Paper tube max-diameter:

200mm

Paper tube min-diameter:

20mm

Paper tube max-thickness:

10mm

Paper tube max-thickness:

1mm

Cutting :

Pneumatic circular–knife

Coating:

Two-side coating

Working speeding:

3-15 m/min

Speed control:

Frequency changer

Motor power:

7.5KW
