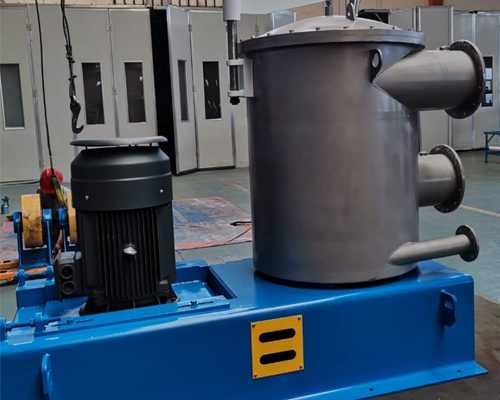

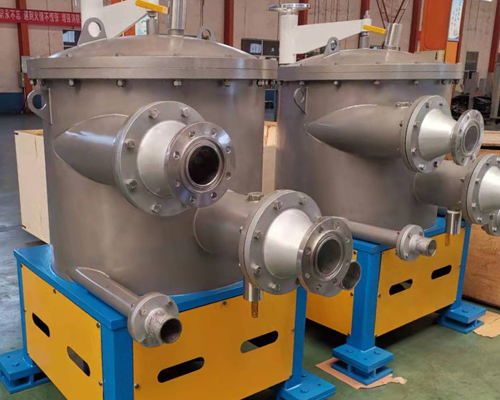

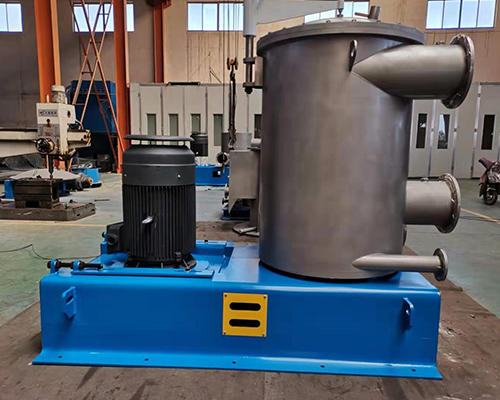

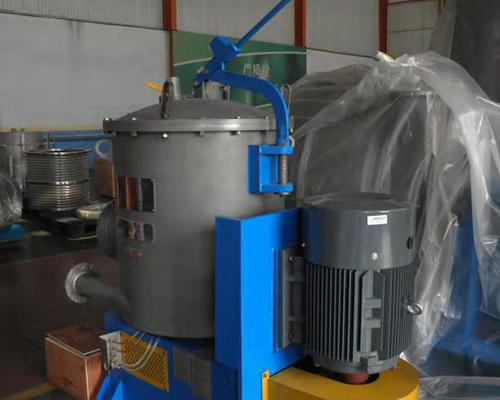

Outflow Pressure Fine Screen

It can be a coarse screen or a fine screen for all kinds of stock and different screening processes. A coarse screen or a fine screen for all kinds of stock and different screening processes. High pulsing frequency of multi-foil or basket. The multi-foil rotor promotes the axial mixture to avoid thickening.

Application:

It can be a coarse screen or a fine screen for all kinds of stock and different screening processes.

Advantage:

1.It is suitable to be as fine screen for waste paper. The screen cylinder gains long life and high throughput with the bar structure. It is convenient to clean the screen slot with high pulsing frequency in the structure of multi-foil or drum rotor. The multi-foil rotor promotes the axial mixture for the stock to avoid stock thickening in the screening process.

2.Good adaptability with high production capability.

3.High production efficiency with high flow speed

4.High removal of the adhesive materials

5.Lower power consumption; simple structure and easy maintenance

1-1-2

Main technical data:

Model

EST0.4

EST0.8

EST1.2

EST1.5

EST2.0

EST3.0

EST4.0

Screen slot size (mm)

Φ1.2-Φ3.0

Screen cut size (mm)

0.15-0.75

Capacity (t/d)

50-100

60-200

80-300

90-360

120-450

180-600

220-900

Inlet consistency (%)

High consistency2%-5%

Low consistency0.6%-2%

Inlet pressure (mpa)

0.15-0.3

Motor power (kw)

15-55

30-75

30-90

45-110

75-132

110-260

132-280
