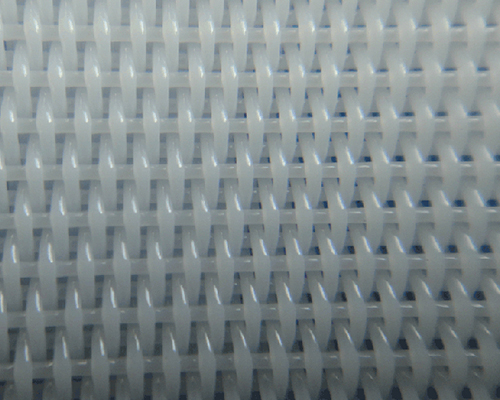

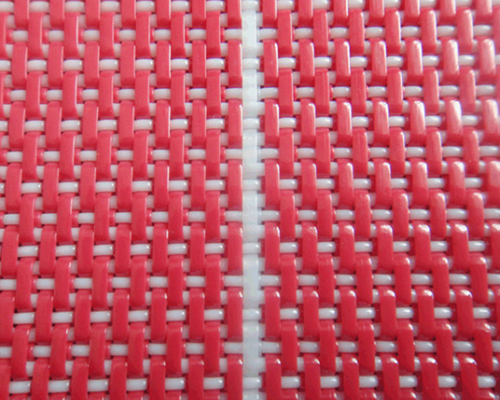

Woven dryer Screen

This dryer screen is designed for the drying section of the medium and high speed paper machine. The mesh design technology is advanced. It can run stably under high temperature (180 degrees). The relatively flat and smooth net surface can ensure the various physical indexes of the paper. It is suitable for paper machines such as high-strength corrugated base paper, T paper, kraft liner board, and low-gray white board paper.

According to the weaving, polyester dryer fabric can be divided into 3-shed, 4-shed. According to the category, it can be divided into one and a half layer, double layer and rectangular wire fabric. According to the joining mode, it can be divided into insert, pin, pin ring and spiral ring join.

– 3-shed one layer and a half are suitable for drying papers below 70g.

– 4-shed double layer fabric is suitable for drying papers above 70g.

-Rectangular wire dryer fabric is suitable for the fore several heating box of the drying zone, quality papers can use all.

Technical parameter：

Weaving series and types

Model

Filament Dia.

(mm)

Density(root/cm)

Tensile strength

(N/cm)

Weight

(Kg/m2)

Thickness

(mm)

Air permeability

(m³/m²h)

CFM

L/m²

200Pa

Warp

Weft

Warp

Weft

Surface

Joint

Socket spiral interface

3 Shed series

22503

0.5

0.5

24

12

2000

1400

900

1.06

2.0

8000

500

24503

0.5

0.5

25

12

2000

1400

900

1.10

2.0

7000

438

4 Shed series

22504

0.5

0.5

24

12

2000

1400

900

1.26

2.1

12000

750

24504

0.5

0.5

24.5

12

2000

1500

950

1.3

2.1

11000

680

8 Shed series

24504-A

0.5

0.5

24.5

12.6

2000

1500

900

1.2

1.75

6800

425

Round wire dryer screen

4106-1

0.5

0.3

22.8

12.4

2200

1500

900

1.3

1.80

8000

500

0.7

Flat dryer screen

4106-2

0.37*0.62

0.5

19.6

15.2

2200

1500

900

1.1

1.55

5000

313

20654

0.33*0.52

0.65

22

7.5

2000

1400

800

1.02

1.35

10000

625

18688

0.30*0.58

0.35

20

18.5

2000

1400

800

1.2

1.40

1600

100

0.68

16904

0.29*1.06

0.9

15.2

8.6

1600

680

580

1.33

1.54

1920

120
